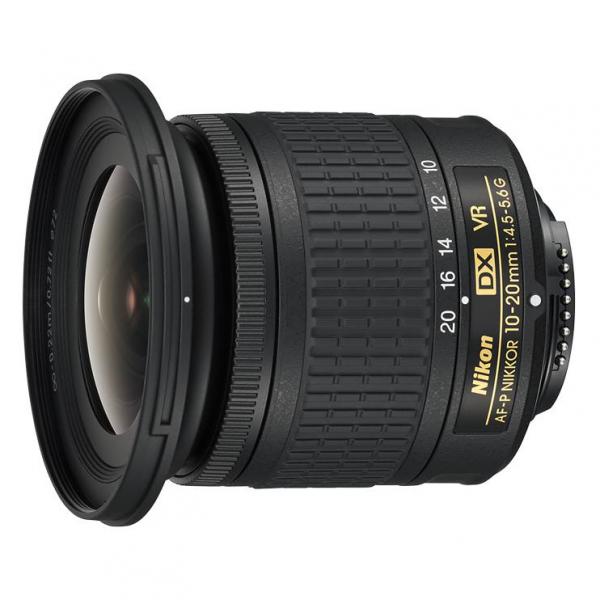

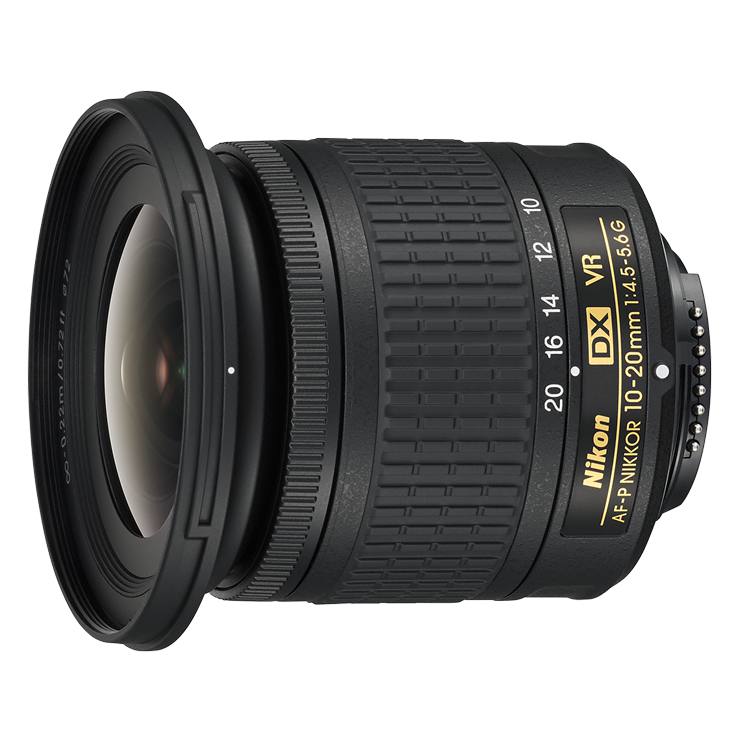

Nikon AF-P DX NIKKOR 10-20mm f/4.5-5.6G VR Lens

Journey into the world of dramatic perspectives. From big skies to frame-filling close-ups, expand your creative options with the ultra-wide-angle zoom lens that's built to travel.

Technical Specifications

Format	DX
Focal length	10–20 mm
Maximum aperture	f/4.5 to 5.6
Minimum aperture	f/22 to 29 The minimum aperture displayed may vary depending on the size of the exposure increment selected with the camera.
Lens construction	14 elements in 11 groups (including 3 aspherical lens elements)
Angle of view	109° to 70°
Minimum focus distance	0.22 m (0.8 ft) from focal plane at all zoom positions
Maximum reproduction ratio	0.17x
VR (Vibration Reduction) image stabilization	Yes, 3.5 stops (When attached to a nikon DX-format digital SLR camera with zoom, set at the maximum telephoto position. Based on CIPA Standard)
No. of diaphragm blades	7 (rounded diaphragm opening)
Filter-attachment size	72 mm (P = 0.75 mm)
Dimensions	Approx. 77.0 mm maximum diameter x 73.0 mm (distance from camera lens mount flange)
Weight	Approx. 230 g (8.2 oz)
Autofocus	Yes
Focusing	Manual, Manual/Auto Autofocus controlled by stepping motor; separate focus ring for manual focus
Zoom	Manual zoom using independent zoom ring
Supplied accessories	LC-72 72 mm snap-on Front Lens Cap, LF-4 Rear Lens Cap, HB-81 Bayonet Hood, CL-1015 Lens Case

The number of cameras compatible with this lens is limited. Even for compatible cameras, firmware update may be required*. Fully compatible models: D7500, D5600, D5500*, D5300*, D3400, D3300*, D500 and later models.

Compatible models with limited functions: D5, D810 series, Df, D750, D7200, D7100, D5200, Nikon 1 series with the FT1.

Incompatible models: D4 series, D3 series, D2 series, D1 series, D800 series, D700, D610, D600, D300 series, D200, D100, D7000, D5100, D5000, D90, D80, D70 series, D3200, D3100, D3000, D60, D50, D40 series, film cameras.
