Dimensions (L x H x W) (mm/in.)
110 x 74 x 42/4.3 x 2.9 x 1.7
Finder - Magnification (x)
6
Electromagnetic compatibility
FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003
Distance display (Increment) (m/yd.)

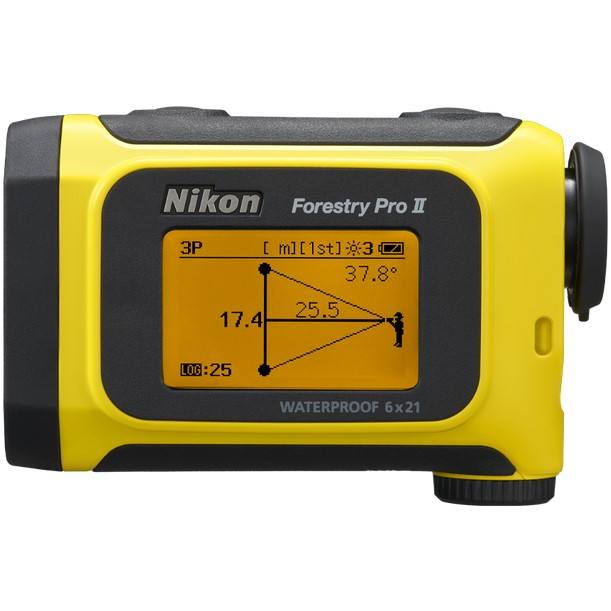

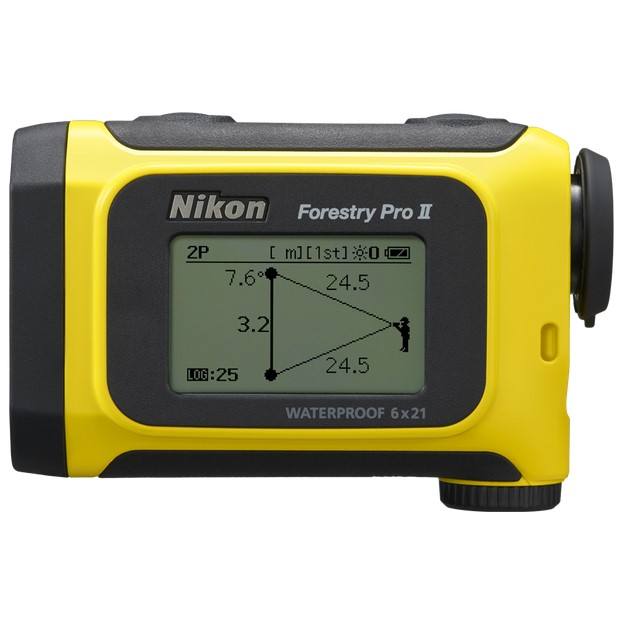

[Internal Display]
Act (Actual Distance):
Main-indicator:
every 0.1m/yd.
Sub-indicator:
every 0.1m/yd. (shorter than 999.9m/yd.)
every 1m/yd. (1000.0m/yd. and over)
Hor (Horizontal Distance) and Hgt (Height):
every 0.1m/yd.
Ang (Angle):
every 0.1º
[External Display]
Act (Actual Distance), Hor (Horizontal Distance) and Hgt (Height):
every 0.1m/yd.
Ang (Angle):
every 0.1º
Laser classification
IEC60825-1: Class 1M/Laser Product
FDA/21 CFR Part 1040.10: Class I Laser Product
Measurement range (actual distance) (m/yd.)
Distance: 7.5-1,600 m/8-1,750 yd.
Angle: ±89º
Finder - Actual field of view (º)
7.5
Waterproof performance
Waterproof (up to 1m for 10 minutes), fogproof
Battery chamber is rainproof — JIS/IEC protection class 4 (IPX4) equivalent
(under Nikon's testing conditions)
Finder - Eye relief (mm)
18.0
Power source
CR2 lithium battery × 1 (DC 3V)
Automatic power-off (after approx. 30 sec. unoperated)
Finder - Exit pupil (mm)
3.5
Environment
RoHS, WEEE
Accuracy (actual distance) (m/yd.)
±0.3 m/±0.3 yd. (shorter than 1,000 m/1,000 yd.)
±1.0 m/±1.0 yd. (1,000 m/1,000 yd. and over)
Weight (excluding battery) (g)
170
Finder - Effective objective diameter (mm)
21
