Pentax Eyepieces

Pentax Scope Eyepieces

PENTAX provides an impressive lineup of high-performance eyepieces for use with their spotting scopes and for use with astronomical telescopes. Available in a variety of magnifications, each PENTAX eyepiece features fully multi-coated lenses to increase light transmission and color quality

XF eyepieces
Designed specifically for use on the PF-65 ED scope
Multicoated lenses
However these eyepieces are not waterproof and do not have the extra low dispersion lanthanum glass but they are great value for money

XW & XL eyepieces feature
JIS Class 4 water proofing
Multicoated lenses
Low-dispersion elements
XW fixed eyepieces have an apparent 70 degree field of view, which provides fantastic panoramic views.

XF12
Magnification : 32.5x (When used on the PF-65 ED scope)
Focal Length : 12mm
Field of view : 1.8 degrees
Eye relief : 18mm

XF8.5
Magnification : 46x (When used on the PF-65 ED scope)
Focal Length : 8.5mm
Field of view : 1.3 degrees
Eye relief : 18mm

XW20
Suitable for all Pentax spotting scopes and Astronomical telescopes with 1.25" eyepiece connection
Magnification : 27x when used on the PF-80 ED scope (will vary depending on which scope you use)
Focal Length : 20mm
Eye relief : 20mm

XW14
Suitable for all Pentax spotting scopes and Astronomical telescopes with 1.25" eyepiece connection
Magnification : 37x when used on the PF-80 ED scope (will vary depending on which scope you use)
Focal length : 14mm
Eye relief : 20mm

XW10
Suitable for all Pentax spotting scopes and Astronomical telescopes with 1.25" eyepiece connection
Magnification : 52x when used on the PF-80 ED scope (will vary depending on which scope you use)
Focal length : 10mm
Eye relief : 20mm

XW7
Suitable for all Pentax spotting scopes and Astronomical telescopes with 1.25" eyepiece connection
Magnification : 74x when used on the PF-80 ED scope (will vary depending on which scope you use)
Focal length : 7mm
Eye relief : 20mm

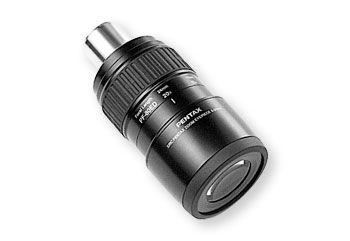

XL8-24 Zoom
Suitable for all Pentax spotting scopes and Astronomical telescopes with 1.25" eyepiece connection
Magnification : 20-60x when used on the PF-80 ED scope (will vary depending on which scope you use)
Focal length : 8-24mm
Eye relief : 20mm
