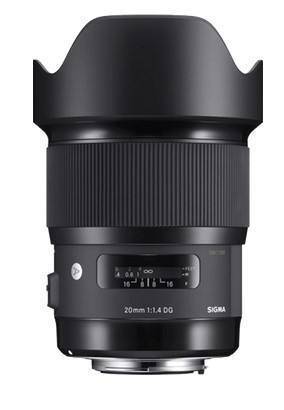

Sigma 20mm F1.4 DG HSM A Panasonic L-Mount Fit

To offer an ultra-wide-angle 20mm focal length and F1.4 brightness at wide-open aperture, this lens incorporates a large double aspherical lens 59mm in diameter. Lenses of this type had been considered extremely difficult to manufacture, but SIGMA took on the challenge to realize an F1.4 ultra-wide-angle lens that fulfills the strict performance requirements of the SIGMA Art line. What made this breakthrough possible were SIGMA’s advanced manufacturing technologies, which the company has developed over time by producing a wide range of ultra-wide-angle and large-aperture lenses. For example, milestone lenses such as SIGMA 12-24mm F4.5-5.6 EX DG ASPHERICAL HSM, SIGMA 8-16mm F4.5-5.6 DC HSM, and SIGMA 18-35mm F1.8 DC HSM | Art were completely original products that helped SIGMA develop outstanding design and production know-how and its current high-precision, high-efficiency production system. In turn, these advances made possible the new SIGMA 20mm F1.4 DG HSM | Art. Moreover, SIGMA’s advanced optical design minimizes distortion, transverse chromatic aberration, sagittal coma flare, and the reduction of brightness toward the edges of the image. Delivering top performance even at wide-open aperture, this lens can be considered the culmination of SIGMA’s Art line.

*Among interchangeable lenses for digital cameras with 35mm full-frame image sensors (SIGMA research as of October 2015)

This lens minimizes chromatic aberrations, a common issue in large-aperture ultra-wide-angle lenses. It features two FLD (“F” Low Dispersion)* glass and five SLD (Special Low Dispersion) glass elements to minimize transverse chromatic aberration, which is mainly visible around the edge of the image. The optimized lens power distribution helps minimize axial chromatic aberration. As a result, this lens delivers high image quality in every situation without color smearing, and its rendering performance is consistently sharp with high contrast.

*FLD glass is ultra-low-dispersion glass that offers performance of the highest level. Highly transparent, its refractive index and dispersion are extremely low as compared to conventional types of glass. It offers characteristics very similar to those of fluorite, which is valued for its high anomalous dispersion. These characteristics minimize residual chromatic aberration (secondary spectrum), which cannot be corrected by ordinary optical glass, while helping to produce sharp, high-contrast images.

Distortion is a common issue in wide-angle lenses, and it is not possible to correct it simply by changing the aperture value. For this reason, a lens must be designed from the start to minimize this issue. By adjusting the incidence angle of light starting with the first lens element and incorporating optimally positioned aspherical glass elements, the SIGMA 20mm F1.4 DG HSM | Art lens minimizes distortion throughout the entire image.

From the start of the design process, SIGMA measured flare and ghosting to establish an optical design that is resistant to strong incidental light sources such as backlight. At the prototyping stage, SIGMA used not only simulations but actual photographic experiments to assess flare and ghosting under multiple criteria, identify the causes of these issues under a wide range of situations, and take measures to mitigate them. In addition, SIGMA’s Super Multi-Layer Coating helps further reduce flare and ghosting and provide sharp, high-contrast images even in backlit conditions.

At the dawn of the film camera, there was very little high-sensitivity film, and bright lenses that worked well in low-light conditions came to be known as “high-speed lenses.” These lenses are ideal for shooting indoors, in the evening, under cloudy skies, or in any low-light situation. Since the SIGMA 20mm F1.4 DG HSM | Art provides the benefits of an ultra-wide angle lens with minimal distortion, it is ideal for photographing landscapes, starry skies, and architecture. In addition to capturing wide-angle shots with the whole scene in focus, the photographer can leverage wide-open aperture to take snapshots with the subject in focus and the background blurred with an attractive bokeh effect. Designed for ultra-high-megapixel digital cameras, this high-performance lens delivers outstanding resolution and high-clarity image quality even at wide-open aperture.

SIGMA is organizing all its interchangeable lenses into three product lines: Contemporary, Art, and Sports, each with a distinctive concept. Designed with a focus on sophisticated optical performance and abundant expressive power, our Art line lenses deliver high-level artistic expression. Offering astonishing rendering performance that meets the highest standard, they are perfect for landscapes, portraits, still-lifes, close-ups, and casual snaps. They are made for the kind of photography that unleashes the inner artist. A powerful ally in every genre of photography, SIGMA’s Art line lenses excel both in the studio for formal works and outdoors for impressive shots of architecture, starry skies, and many other scenes.

Matching the high-quality finish of the lens exterior, optionally available metal lens cap LC907-02 will go on sale simultaneously with the lens. Featuring materials identical to those of the lens barrel, this metal lens cap establishes a new level of unity within SIGMA’s new lens lines.

With the optional SIGMA USB DOCK, you can update your lens firmware and adjust the focus position and other settings. Simply connect the lens to the SIGMA USB DOCK and the dock to a computer to use the dedicated SIGMA Optimization Pro software and perform various types of customization and adjustment.

In our new product lines, the lens caps and AF/MF switches are newly designed to improve usability. To ensure precise operation, internal parts feature generous use of metal and Thermally Stable Composite (TSC)*, which is highly compatible with metal parts. The lens barrel is engraved with the year of release for instant access to this information.

*TSC offers thermal expansion characteristics similar to those of aluminum. Parts made with TSC deform less, making lens construction of extremely high precision possible. As compared to polycarbonate containing 20% glass, a commonly used material, TSC offers approximately 70% higher elasticity. As compared to polycarbonate containing 30% glass, it offers 25% higher elasticity. (Comparison is between SIGMA-produced components.)

We used to measure lens performance with MTF measuring system using conventional sensors. However, we’ve now developed our own proprietary MTF (modulation transfer function) measuring system (A1) using 46-megapixel Foveon direct image sensors. Even previously undetectable high-frequency details are now within the scope of our quality control inspections. The SIGMA 50mm F1.4 DG HSM will all be checked using this “A1” before they are shipped.

* A1: Aizu1

All SIGMA’s manufacturing – right down to molds and parts – with a few exceptions, are carried out under a single integrated production system, entirely in Japan. We are now one of the very few manufacturers whose products are solely “made in Japan”. We like to think our products are somehow imbued with the essence of our homeland, blessed as it is with clean air and water, and focused, hard-working people. We pride ourselves on the authentic quality of SIGMA products, born of a marriage between highly attuned expertise and intelligent, advanced technology. Our sophisticated products have satisfied professionals and lovers of photography all over the world, because our manufacturing is based on genuine craftsmanship, underpinned by the passion and pride of our experts.

The 9 blade-rounded diaphragm creates an attractive blur to the out-of-focus areas of the image.

The HSM (Hyper Sonic Motor) ensures a silent, high-speed AF function. By optimizing the AF algorithm, smoother AF is achieved. It incorporates a new full-time manual focusing mechanism that switches to manual focusing, simply by rotating the focus ring, even when AF is being used. This allows the photographer to make focus adjustments quickly and easily. With the optional SIGMA USB DOCK, you can also set it to conventional full-time manual focus override.

*Depending on the mount, initial operation of full-time manual focus differs

This lens incorporates a brass made bayonet mount which has both high accuracy and durability. A special treatment to reinforce its strength is applied to the surface giving it greater strength and making it highly resistant to long-term use.

As an experienced lens manufacturer that has been creating a diverse range of interchangeable lenses, we have started the innovative chargeable service “Mount Conversion Service”. With this service, the mount of your current SIGMA lenses can be changed to another mount of your choice. It gives a new life to your favorite lenses when you wish to use it on a different camera body.

* This “Mount Conversion Service” is different from a normal repair. In order to apply for the service, please see our Service & Support Section.

Nikon mounts do not have an aperture ring. Some functions may not work depending on the camera model.
This lens cannot be used with film SLR cameras with the exception of the Nikon F6 and Canon EOS-1v.
The angle of view varies depending on which camera the lens is mounted on.
